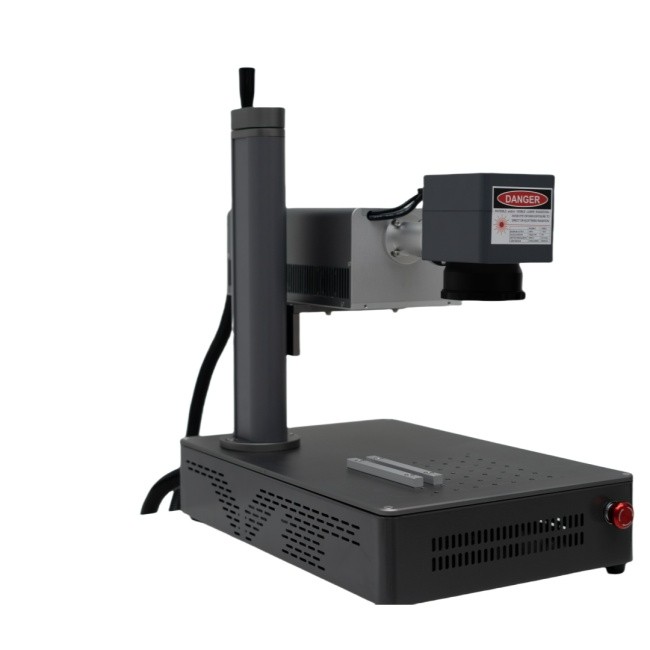

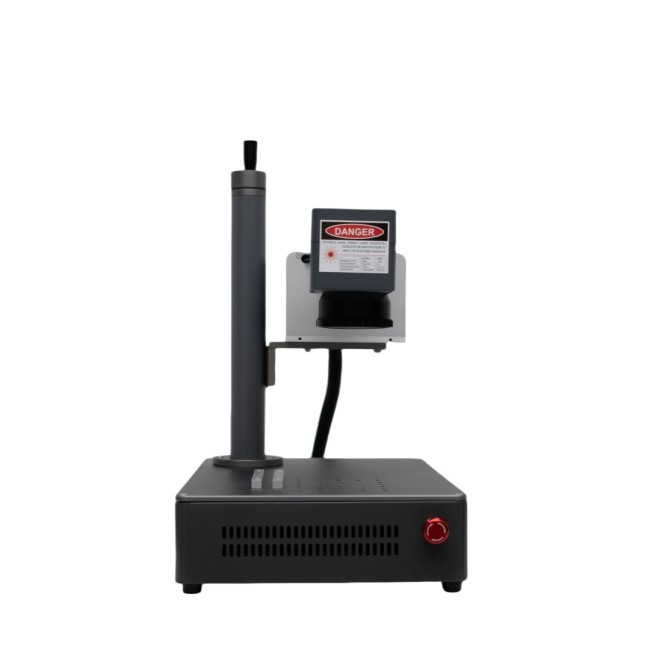

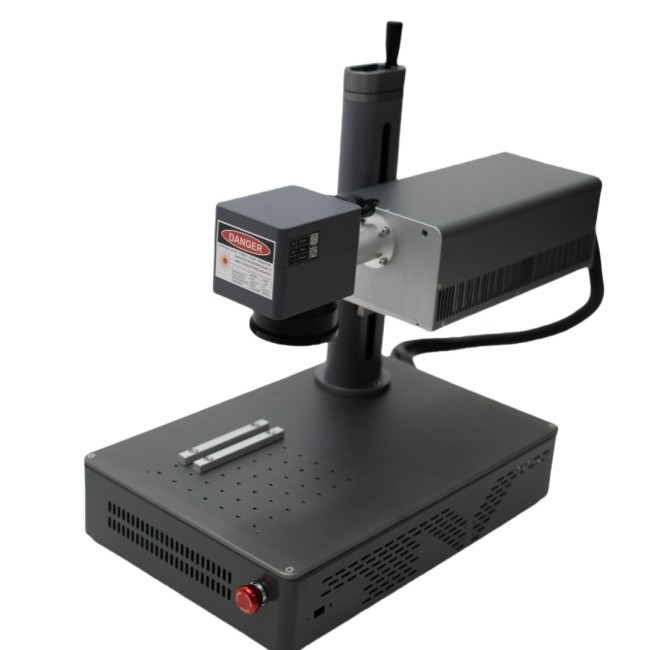

min 3w 5w UV laser marking machine air cooling

A UV laser marking machine is a type of laser marking machine that uses a UV (ultraviolet) laser beam to mark or engrave materials.UV will mark plastics and silicon materials without the need of additives and will also mark glass with drastically reduced risk of micro fracture. The excellent beam quality also affords this laser the ability to be utilized in micro marking applications such as electronics, circuit boards and microchips in addition to solar panels and precise medical marking applic

Product Description:

UV Laser marking machine Detail Specs

I. Advantage of BFT UV Based Laser Marking Machine

UV laser with its 355nm wavelength which is versatile in marking a wide range

 of materials is perfect for "cold marking" applications where heat zones are not

 allowed - the UV will mark plastics and silicon materials without the need of additives

 and will also mark glass with drastically reduced risk of micro fracture. The excellent beam

 quality also affords this laser the ability to be utilized in micro marking applications such as

electronics, circuit boards and microchips in addition to solar panels

 and precise medical marking applications.

II. details

1. Control Switch: Including emergency stop, key switch, power switch, etc., convenient to

 identify and easy to operate.

2. Lifting System: Shake hand wheel, laser focus distance can be adjusted easily.

Operation is simple and convenient.

3. Rotary Device: Using step motor to realize numerical control, the speed can be controlled

 by the computer liberalization.





     Min size 3w 5w uv laser marking machine which can used widly and can move it

easily .






















CHARACTERISTIC

SUPERFINE COLD LIGHT MARKING

1.Cold Laser Engraving: The UV laser, has the remarkable ability to engrave

with minimal heat. Due to the specific UV light spectrum, this technology

can engrave various materials without causing

 excessive heating. It is particularly effective on plastics and other

materials that react negatively to heat, allowing for clear and p recise markings.

2. The machine wavelength is 355nm light Ultraviolet laser marking machines

have the advantage of limiting thermal stress that other laser machines do not.

3 The heat affected area is very small, will not produce thermal effects, will not

produce material scorching problem.

4, The good quality and small focus spotlight could achieve the ultra-fine

marking with high speed and high efficiency.

5, The cooling system is air cooling or water cooling according its source.

6, High efficiency of the photoelectric conversion and long service life.

Applicable material : The Uv laser marking machine can be working with mostly all of the

mate rial ,like plastic , glass ,metals crystal products, arts and crafts of surface and internal

thin film etching ect While the UV laser can engrave and mark materials it may not achieve the same

 depth and clarity as a fiber laser engraver machine. However, it still

demonstrates excellent performance on various metals. Here is a list of metals compatible wit

the UV laser Working environment requirement 1.Ambient temperature requirements at 18-35

2.Humidity requirements <90%, no condensation, should be installed dehumidifier.

3.There should be no strong electromagnetic signal interference near

 the installation equipme nt. Install around to avoid the infinite transmission station.

4.Ground amplitude: less than 50um; vibration acceleration: less than 0.05g.

To avoid a large number of stamping and other machine tools in the vicinity.

5.Equipment space requirements to ensure that smoke-free dust,

to avoid metal polishing and other dust serious work environment.

6.Air pressure: 86-106kpa, Some environments should be equipped with

anti-static floor to enh ance the shielding.

7.Work cooling water quality of the circulating water is strictly required

 to require the use of pur ified water, deionized water or distilled water,

can not use tap water, mineral water and other high metal ions or other minerals.








A UV laser marking machine is a type of laser marking machine that uses a UV (ultraviolet) laser beam

to mark or engrave materials. The UV laser marking machine has a shorter wavelength than traditional CO2 lasers,

 which makes it ideal for marking and engraving materials that are difficult to mark with other types of lasers.
