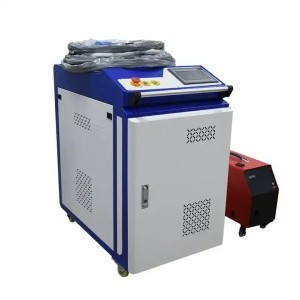

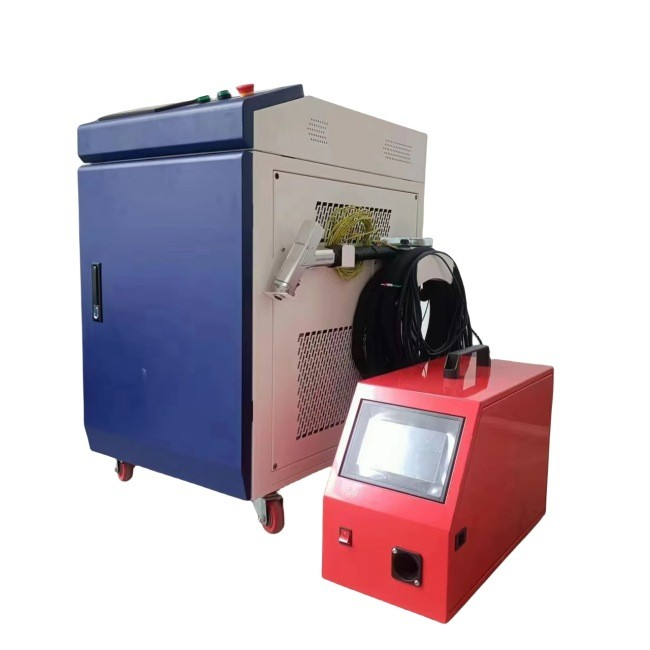

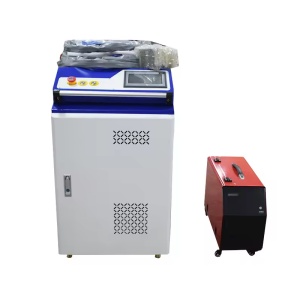

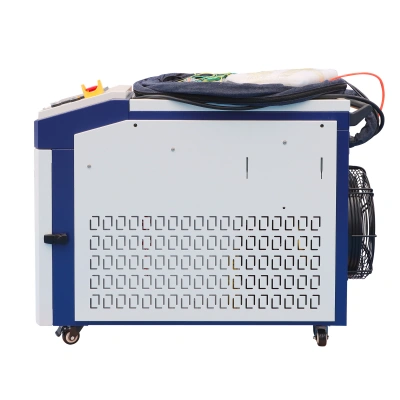

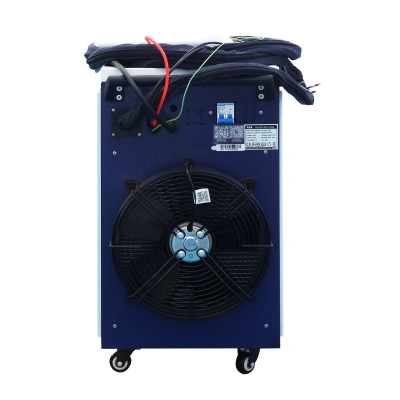

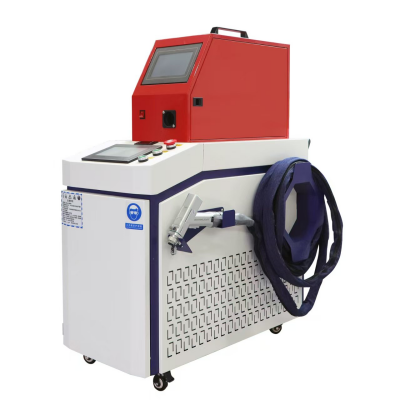

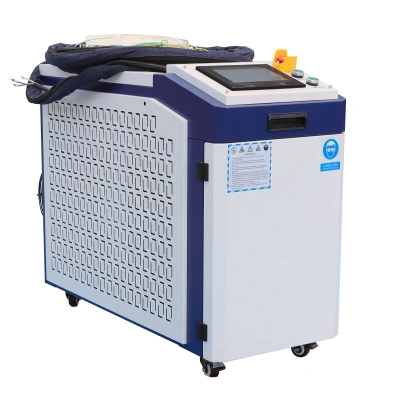

compact all in one fiber laser welding machine with built in water chiller small footprint easy move no separate chiller unit fast welding smooth seam ce certified factory direct supply
Fiber laser welding machine is a welding process that uses a laser beam as the heat source.
As non-contact tools, fiber lasers are low maintenance and offer fast welding speeds.
The laser beam is highly precise and has a low heat input, which minimizes damage to the materi
Metal fiber laser wedling machine detail specs as follow
| Item | Specification |
|---|---|
| Laser Type | Fiber Laser |
| Laser Wavelength | 1064‑1080nm |
| Rated Laser Power | 1000W 1500W 2000W 3000W optional |
| Structure | All‑in‑one integrated built‑in water chiller |
| Working Mode | Continuous / Modulated |
| Fiber Optical Cable Length | Standard 10m customizable |
| Welding Speed | 0‑120 mm/s |
| Swing Welding Width | 0‑5 mm adjustable |
| Welding Applicable Thickness | Stainless steel carbon steel 0.3‑6mmAluminum copper 0.3‑4mm |
| Welding Wire Diameter | 0.8 1.0 1.2 1.6 mm |
| Welding Torch Weight | About 0.75kg |
| Control System | Multi‑language touch screen |
| Power Supply | 220V / 380V 50Hz 60Hz |
| Cooling System | Built‑in industrial water chiller support 24h continuous working |
| Moving Caster | Equipped easy movement |
| Operating Environment | Temperature 10‑40℃ Humidity ≤70% non‑condensing |
| Overall Dimension(LWH) | 9506001050 mm |
| Machine Net Weight | 160‑190kg |
| Standard Accessories | Welding gun 10m fiber cable nozzle set protective lens foot switch operation manual |
| Optional Accessories | Wobble welding head automatic wire feeder laser cutting head laser cleaning head longer fiber cable |
| Certification | CE certified |
| Warranty | 1 year for whole machine |
Material Reference Welding Process Table
| Material | Thickness | Recommended Power | Welding Speed | Wire Required |
|---|---|---|---|---|
| Stainless Steel | 1.0mm | 1000‑1200W | 70‑100 mm/s | No |
| Stainless Steel | 2.0mm | 1500‑2000W | 50‑80 mm/s | Optional |
| Carbon Steel | 3.0mm | 2000W | 40‑60 mm/s | Yes |
| Aluminum Alloy | 1.5mm | 1500‑2000W | 40‑60 mm/s | Yes |
| Aluminum Alloy | 2.5mm | 2000‑3000W | 30‑50 mm/s | Yes |
| Galvanized Sheet | 1.0‑2.0mm | 1500W | 50‑70 mm/s | Yes |
Fiber laser welding machines interduction ,4 in 1 function of the laser welding machine
with Source Raycus , Max 1000w, 1500w , 2000w, 3000w ect.
Aslo the fiber laser welding machine can upgrade professional Laser cleaning machine
as need.
The fiber laser welding machine widly used in ss steel , carbon steel , steel inside welding
T-Shap welding ect,
all in one integrated design laser source and water chiller inside one cabinet
no separate external chiller unit save workshop space small footprint
compact cabinet with casters easy to move between different work stations
built in industrial water cooling system stable temperature control support 24h continuous working
touch screen control panel emergency stop button simple human‑machine operation
high welding speed 4 to 10 times faster than traditional tig mig welding
minimal heat affected zone low thermal deformation no workpiece warping
smooth weld seam little spatter reduce or cancel post polishing
easy to operate new workers master within half day no senior welder required
weld stainless steel carbon steel aluminum copper galvanized sheet dissimilar metals
optional wobble welding head improve gap tolerance
optional automatic wire feeder handle large welding gap
long service life fiber laser source up to 100000 hours low power attenuation
low consumable cost only nozzle and protective lens for replacement
light handheld welding gun flexible multi angle welding for irregular workpieces
ce certified complete safety protection emergency stop safety interlock
factory direct supply one year warranty complete after sales support
Q what is the advantage of all in one fiber laser welding machine
A laser source and water chiller are integrated inside one cabinet no separate chiller unit save workshop space equipped with casters easy to move to different working positions convenient for mobile welding work reduce pipeline connection work and installation time
Q can all in one laser welder work 24 hours continuously
A yes built‑in industrial grade water chiller provides stable cooling performance same cooling capacity as split type machine support 24 hours non‑stop industrial production simple regular maintenance required
Q is all in one machine difficult for installation
A almost plug and play finish power connection and water check then can start welding no complicated pipeline assembly save your installation time
Q what metal materials can this integrated fiber laser welder weld
A support stainless steel carbon steel aluminum copper brass galvanized sheet titanium alloy also support dissimilar metal welding contact us for free welding test for special materials
Q what power options are available for all‑in‑one fiber laser welding machine
A 1000w 1500w 2000w 3000w for different metal thickness tell us your material and thickness we recommend suitable power
Q does all‑in‑one model support wobble head and wire feeder
A yes wobble welding head and automatic wire feeder are optional accessories compatible for all power versions
send us your material thickness and working condition we provide suitable configuration suggestion and factory quotation welcome to ask for free welding test
