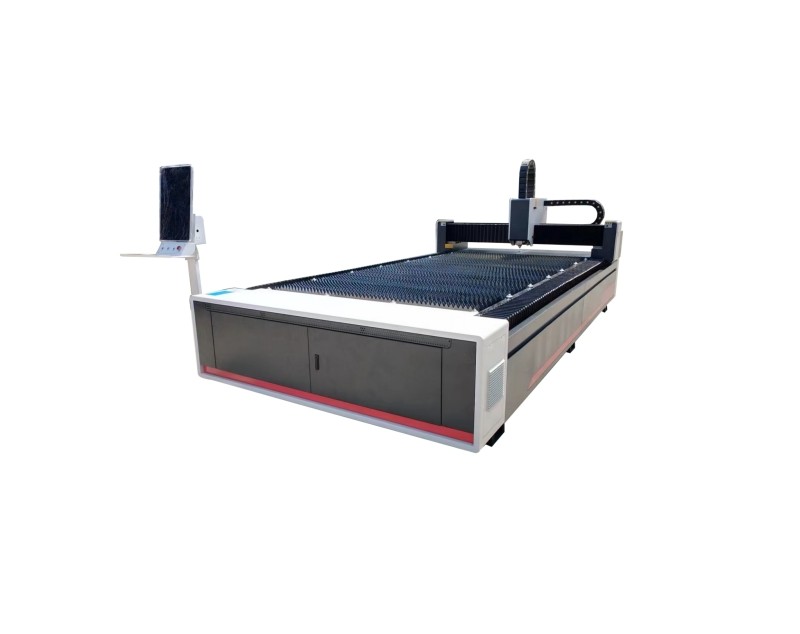

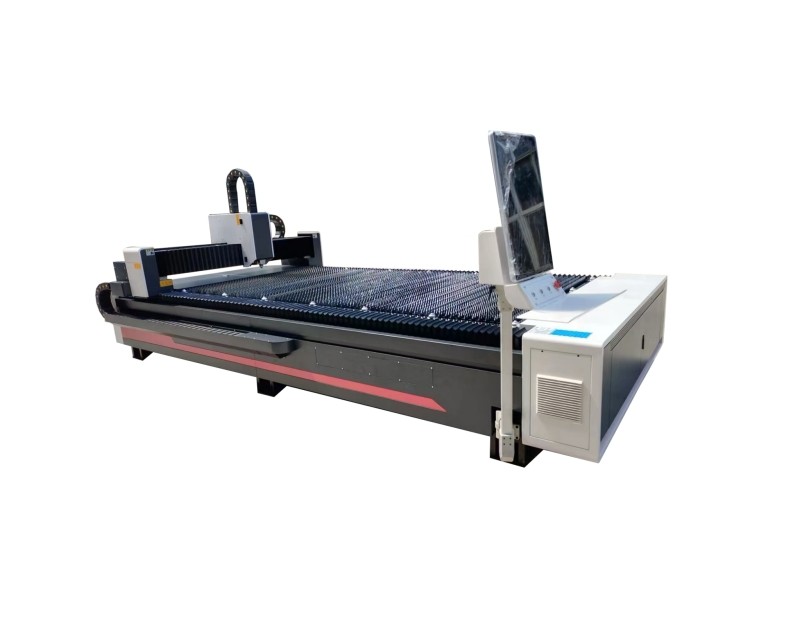

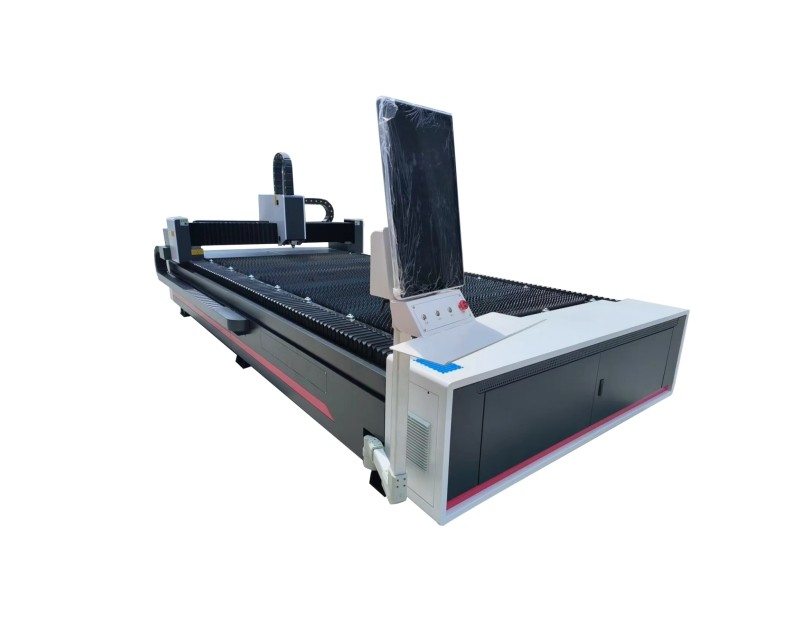

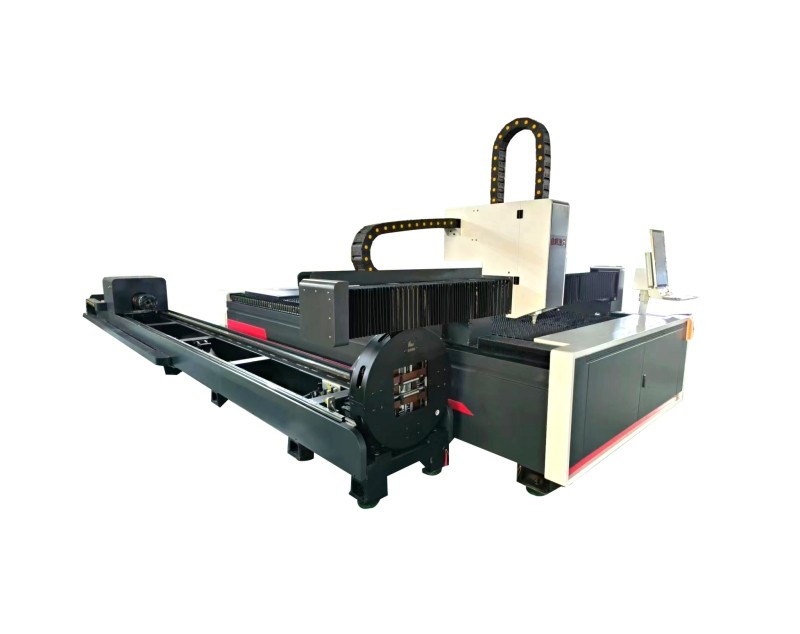

China metal fiber laser cutting machine

Laser type:                      Fiber laser
Kayword:                        Metal laser cutting machine,
                                       Fiber laser cutting machine
                                        Laser cutting machine for metal
Cutting Speed	               100m/min
Cooling Mode	               WATER COOLING
Control System Brand    Cypcut
Applicable Material  	Metal Stainless Steel Carbon Steel
                                        Etc
Cutting Area

Product Description:

Fiber laser cutting machine can do both flat cutting and bevel cutting processing,

and the edge is neat and smooth, suitable for metal plate and other high-precision cutting processing.

1530 metal fiber laser cutting machine is more popular using.

Detail specs of Metal fiber laser cutting machine 3015

Products Name	Fiber laser cutting machine
Model	BFT-1530
Working area	15003000mm (510ft)
Laser power	1000w/1500w/2000w/3000w/6000w
Loading capacity	800kgs
Laser Source	Raycus/Max source
Graphic Format	dwg / dxf / stp
Control system	FSCUT(Cypcut)
Laser Head	Raytools
Water Chiller	Wuhan HANLI/S&A
Servo motor	Japan Fuji motor and driver
Precision reducer	shimpo reducer
Gear rack	YYK RACK
Linear Guide	TAIWAN HIWIN LINEAR
Proportional valve	Japan SMC
Machining breadth	1500*3000MM(OPTIONAL CUSTOMIZED SIZE)
X-axis travel	1500MM
Y-axis travel	3000MM
Z-axis travel	150MM (CUSTOMIZED)
Positioning Accuracy of X and Y axis	0.05mm/m (0.002”)
Repeated positioning accuracy of X and Y axis	0.03mm (0.001”)
Maximum Acceleration of X and Y axis	1.0G
Assist Gasses	Air / Oxygen / Nitrogen
Working voltage	380V
Protection Level of Total Power Supply	IP X 4
Machine total weight	2000kgs
Operating temperature	0℃-40℃
Operating humidity	<90%
Gantry	Strengthen Steel
Machine size (WLH)	224046001800MM
