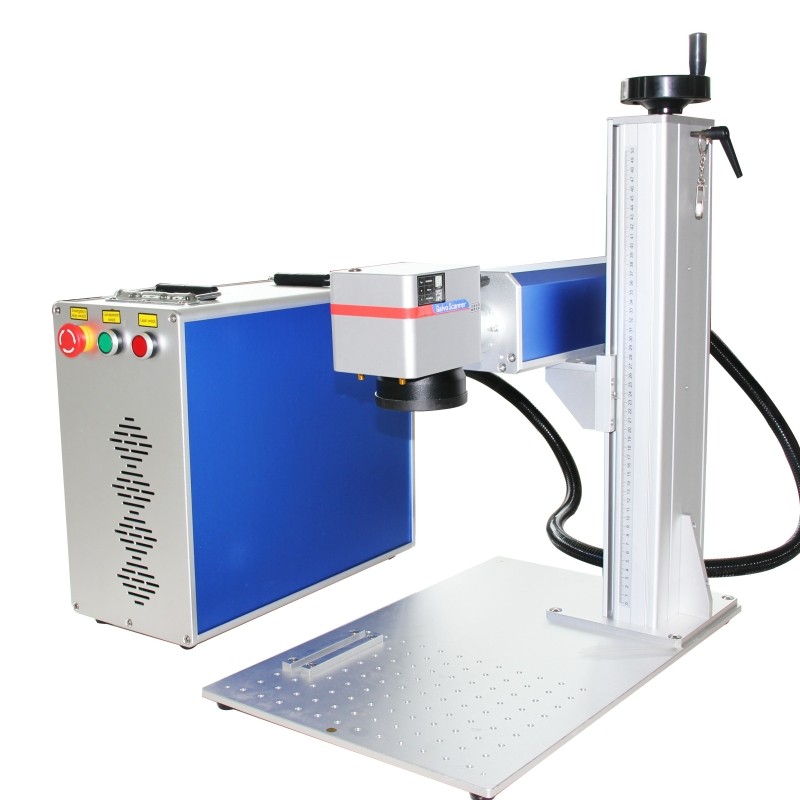

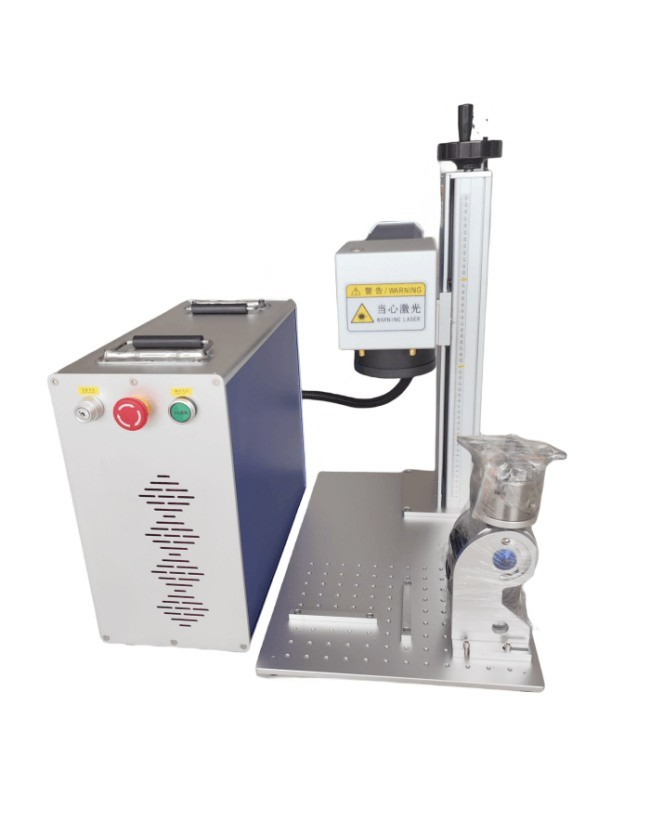

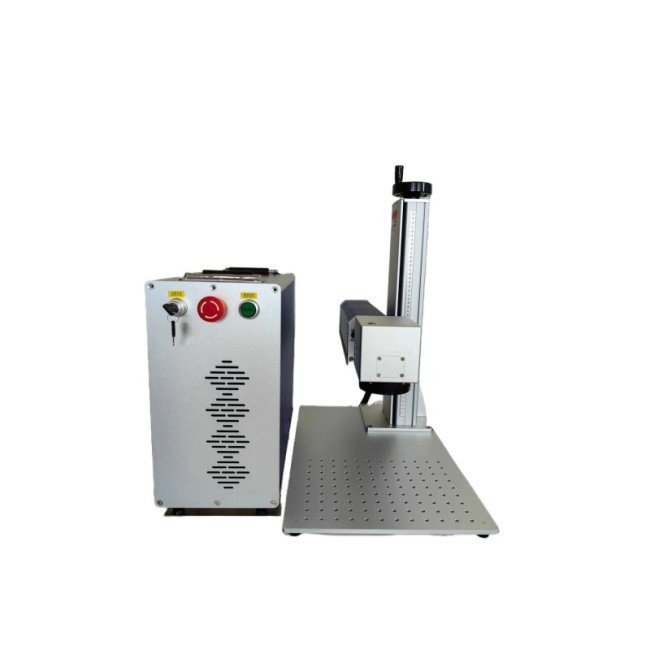

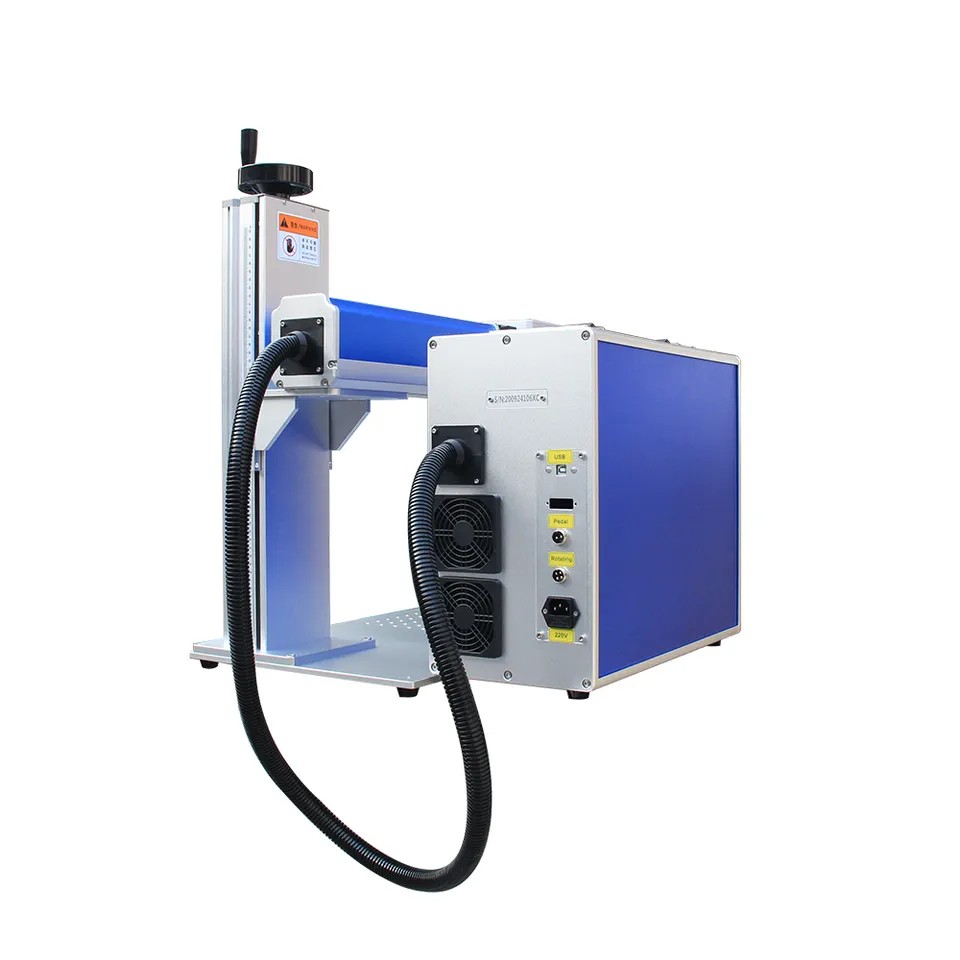

2.5D Fiber laser marking machine 100w

Fiber laser marking machine advantage:
 1.High precision and speed.
2.Wide range power source and various
3.metal and non-metal application materials.
4.World famous brand components.
5.Different configuration can be customized.

Product Description:

Metal Fiber laser engraver machine

metal fiber laser marking machines are used to mark various materials such as metals, plastics, ceramics, and more.

They are commonly used in industries such as automotive, aerospace, medical, and electronics.

II.Application

Materials:

Ø Metals: Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card

Ø Non-metal: Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits,

mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories,

 auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.





Model

BFT- 20S 30S  50S/100W

Laser power

20W 30W 50W /100W

Laser source

Max/Raycus /JPT

Supports graphical format

PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF

Beam quality

m2 <2

Power stability

(8h) <± 1% rms

Pulse repetition frequency

20KHZ ---- 100KHZ

Power consumed

<800W

Minimum line width

50μm

Minimum character

0.3mm

Laser Wavelength

1064nm

Galvanometer Size

110 * 110mm 150*150mm200*200mm 300*300mm

Whole machine power

500w

Software

Win32bit+EZCAD marker system

Cooling way

Air cooling

Operating voltage

110/220V ± 10% /,50/60HZ

Ambient operating temperature

15 ° C - 35 ° C

Weight

55KG

Packing

plywood wooden packaging




501.jpgThe metal fiber laser engraver machine has 20w 30w 50w 100w source ect,working size 110*100mm 150*150mm ,200*200mm ,300*300mm ect














                                                                                                                        The fiber laser marking machine with high speed galvanometer scanning head,famous lens

                                                                                                                      can be working high speed during engraving on metal and non-metal material surface

head and lens_副本.jpg

















card and software_副本.jpg



          The fiber laser engraver  working with JCZ Controller card which easy to operation and using.













accessoreis with machine_副本_副本.jpg
















DESKTOP FIBER LASER MARKING MACHINE_7_副本.jpg





























FIBER MACHINE SAMPLES_副本.jpg


the Fiber laser marking machine 30w 50w 100w ect  laser source brand

RAYCUS  MAX  OR JPT , working size  70*70mm

110*110mm 150*150mm  200*200mm 300*300mm

Application Materials:

Fiber laser marking machine can work with most metal marking applications,

 such as Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark

on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon,etc.

Unleash the power of precision with our fiber laser marking machine.

From steel to plastic, this cutting-edge technology delivers flawless

engraving on any material. Elevate your projects with confidence and quality – the possibilities are endless!
